Filter Press

Product overview

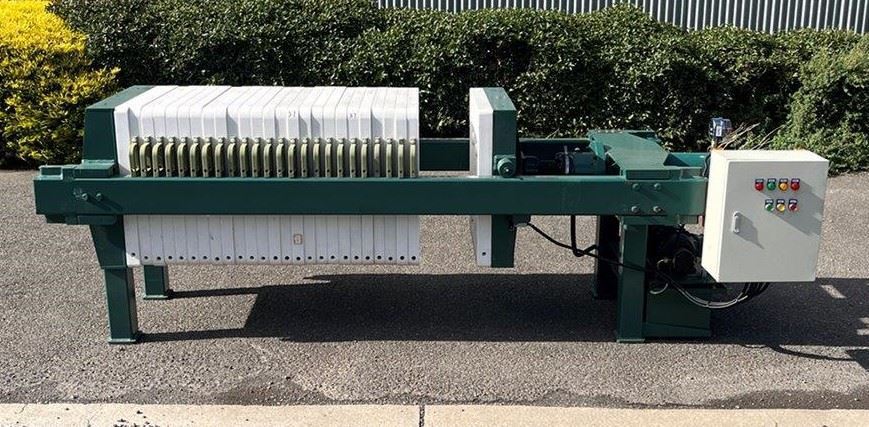

Brand New Filter Press

An industrial filter press is a tool used in seperation processes specifically to separate solids and liquids. The machine stacks many filter elements and allows the filter to be easily opened to remove the filtered solids, and allows easy cleaning or replacement of the filter media.

The working principle of filter presses is that slurry is pumped into the machine such that solids are distributed evenly during the fill cycle. Solids build up on the filter cloth, forming the filter cake; the filtrate exits the filter plates through the corner ports into the manifold, yielding clean filtered water.

Model Number: XMY20/630-24

Filter Area: 20m²

Feeding Pressure: 0.6MPa

Closing Pressure: 18-20MPa

Filter Cake Volume: 300L

24 Recessed plates 700mm X 700mm with a tap on each side of bottom of plate.

Two gutters catching filtered liquid on either side of the press.

Power: 3 Phase 415V 2.2kW

Adjustable pressure gauge.

Air operated diaphragm pump.

Inlet: 2"

Outlet: 2"

Side port suction and discharge.

Max Air Pressure: 8.4 BAR

Max Flow: 151 L/min

Max Head: 84 Metres

Suction Head: 5.48 Metres
