Mikro Pulveriser

Product overview

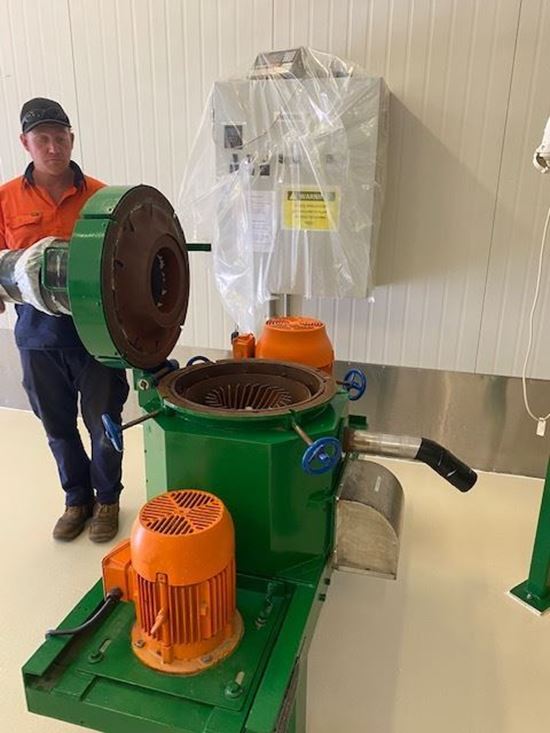

The Mikro ACM Pulverizer (Made Germany) is a vertical impact mill for high capacity fine grinding, it will handle a range of dry materials for a considerable number of uses in the chemical, food, pharmaceutical, cosmetic and plastics fields.

Model ACM 30 (22kw 3600rpm) with inbuilt classifier (3kw 1800pm), no control cabinet.

Grinding rotor speed 4600rpm

Separator wheel speed 500 - 2500pm

Air Capacity 1500cfm

Includes Reimelt 5206 S/S GMBH Dust collector 52 bag 6ft bags x 4.5inch diam, Rotary Valve. Suction Fan 11kw.

Capacities:

Upto 2700kg/hr (Limestone) @ 200Mesh,

Up to 800kg/hr (Kaloin) @ 400Mesh

Spec sheet on other materials available on request.
