Rotary Furnace

Product overview

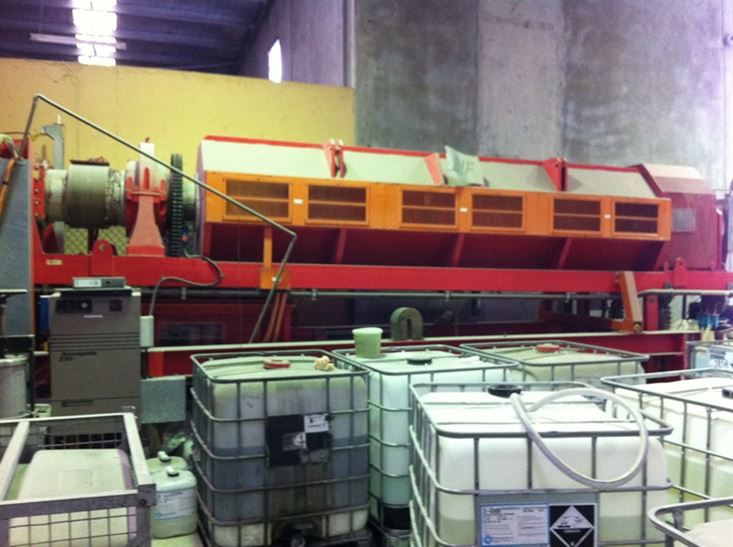

Used- Rotary Calcining furnace is used to dry and calcine  minerals in powder form or a slurry under a protective atmosphere:

Approx overall size is 9m long X 3m high and 2m wide, the barrel length is aprox 7m long X tube is 305mm Die and is constructed from stainless steel.

Electrically heated.

Drying Temperature : 500 C - 600 C

Calcining Temperature 750 C - 800 C

Max Operating Temp 900 C

Atmosphere 3% H2/N2
