Inline Centrifugal Pump

Product overview

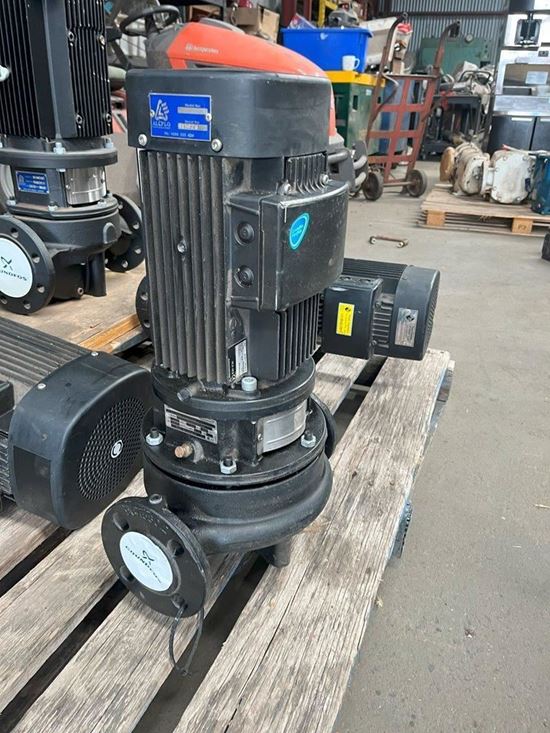

Brand new 'GRUNDFOS' inline single stage centrifugal pump.

3 Phase, 415V, 2.2 kW motor.

RPM: 2900

Volume: 20.5 m³/Hr

Head: 19.5 metres

p/t: 16/90 bar/°C max

Bronze Impeller

Grundfos TP pumps are single-stage, close-coupled in-line centrifugal pumps with mechanical shaft seal and primely for applications such as heating/cooling/district energy. The pumps are fitted with fixed speed motors.

 The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with a fan-cooled asynchronous motor.
