Liquiverter

Product overview

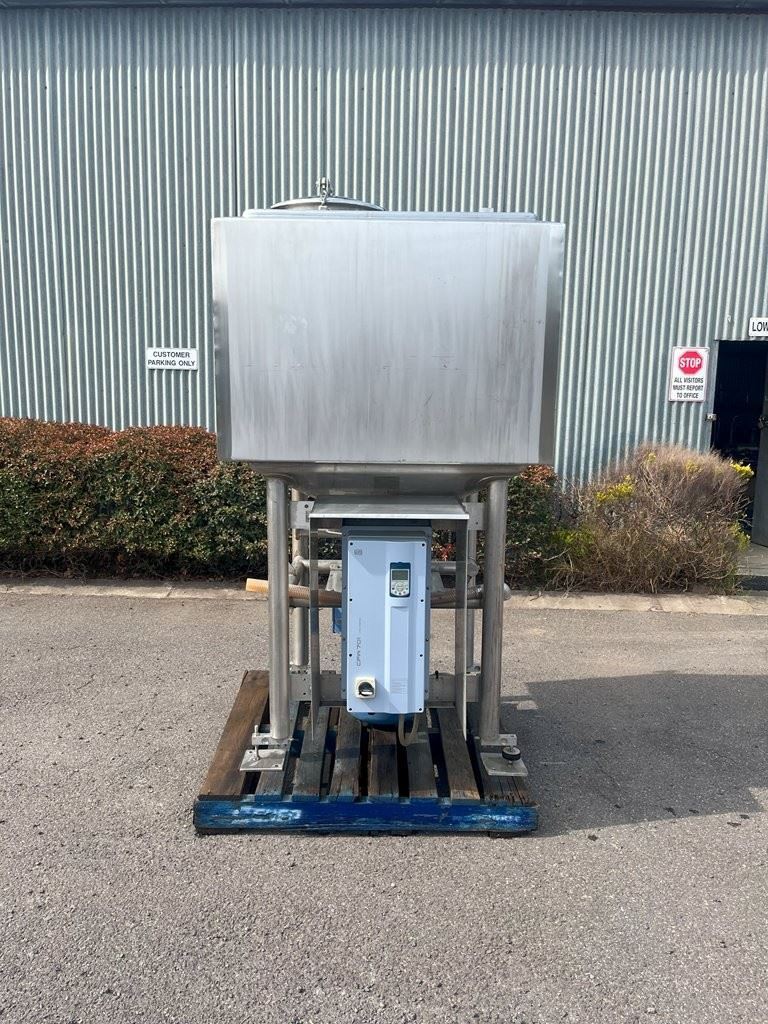

SS Jacketed Liquiverter -700 Litre

Stainless steel construction.

3 Phase, 415 V, 15 kW, 1470 RPM.

WEG Variable Speed Drive

2 Inch inlet on top with feed tube to bottom of tank.

Manhole on top 420mm in diameter.

Rectangular opening on top 200mm x 475mm.

3 Inch outlet .

Tank is fitted to load cells.

Total Volume of Tank: 700 Litres

Overall height: 2150mm

L x W: 1350mm x 1250mm

This unit is a square shaped tank with a bottom mounted high speed mixing impeller. The impeller generates an axial flow, which is re-circulated in the tank via the surrounding mixer chamber. The square shaped tank ensures that there will be no forced rotation of liquids in the tank (forced vortex). On the contrary a free vortex will be created which sucks the liquid down towards the mixing impeller (like in a bath tub outlet, a plug-hole).
This liquid whirl also sucks powders and particles being added through the manway placed in the top of the tank down into the mixing impeller. In both the impeller and the surrounding chamber, high shear forces and turbulence are created ensuring effective and homogeneous mixing.

Unit is in great condition.
