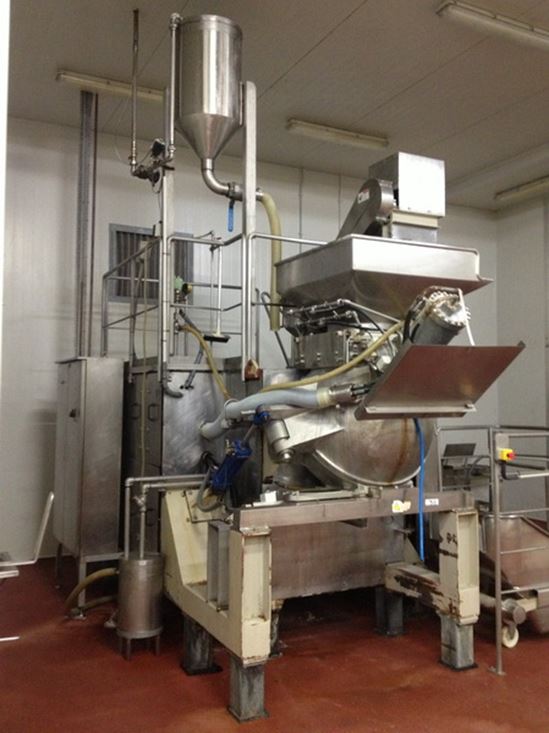

Ball Cutter

Product overview

The vacuum stainless steel Yanagiya ball cutter utilizes very innovative technology for the processing and emulsifying of food products. It works in a similar manner to the STEFAN Cutter Mixer. A great many functions such as fine cutting, kneading, mixing, emulsifying, temperature control, etc are features of this machine. It also saves a great deal of time. The vacuum ball cutter is truly multifunctional.

Applications Mixing, cutting, kneading and emulsification and compounding of fish paste products, meat processing products, dairy goods, mayonnaise, sauces, herbs etc

Structure and Characteristics of the vacuum BALL CUTTER

* The BALL CUTTER processes products in its globular hollow vessel. A knife is set diagonally with a baffle is on the other side.

* Fully automatic computerized. This can be changed to a semi-automatic or manual operation.

* The processing function is fully enclosed under vacuum.

* Process time takes only 8-12 minutes to finish

* The BALL CUTTER creates a smooth fresh unique taste with its high speed rotation under vacuum. It is the machine of the future. The machine is skid mounted and built with its own platform to facilitate loading and discharging.

Technical Details: Ball Capacity: 420L

Batch Capacity: 250 - 280kg

Knife Quantity: 3 pcs

Revolutions: Knife; 2 speed types-High speed 3000rpm. Low speed 1500rpm.

Baffle: Max 60rpm (Optional setting)

Electric Power.3 phase,415V, 123.925kw

Knife; 110/55kW (4/8P)

Hydraulic Power Unit; 11kw

Hydraulic Fan Cooler: 0.2kw

Vacuum Pump; 2.2kw

Lubricant Oil Pump; 0.2kw

Lubricant Oil Fan Cooler; 0.05kw

Water Lubricating Pump; 0.27kw

Materials; Ball Body: SUS casting (SCS)

Baffle: SUS Casting (SCS)

Main Body Frame; SS (Surface is covered with SUS plate)

Knife; SUS

Knife Start: SNCM

Baffle rake; Plastic (Super high molecular polyethylene)

Physical Dimensions of machine: Main Body: 2650mm W x 3790mm L x 3595mm H Control Panel: 660mm W x 1300mm L x 2380mm H

Complete with St/Steel bin lifter, access platform and all accessories to have this up and running in your production line.
