Bottling Filling Line

Complete Bottle Filling Line – Previously Used for Wine

Complete bottle filling, capping and labelling line available, ready for installation and production.

This comprehensive bottling line is suitable for a range of liquid products and was most recently used for wine bottling. The system includes the major equipment required to rinse, fill, seal, sleeve, label and convey bottles through the production process.

Line Includes:

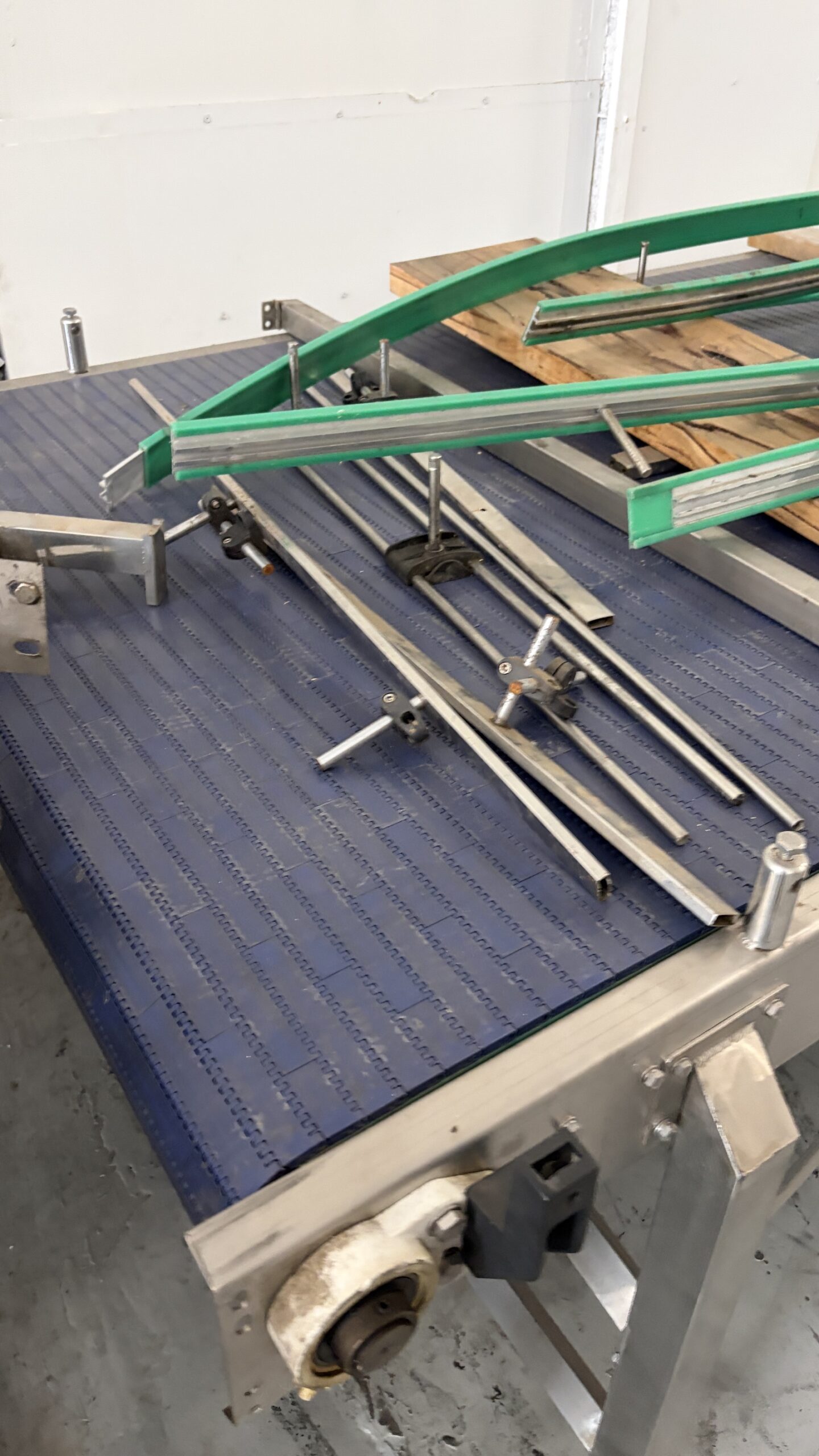

• Bottle infeed conveyors – 2 conveyors, 3.5m long x 1.5m wide and 2m long x 600mm wide, variable speed drive.
• Bottle rinser, filler and corker, YOM 2022– 3.3m long x 1.6m wide, water rinse, rotary 12 head filler and apply cork if required.
• ROPP screw capper, BORELLI, Alexa HD2.0, YOM:2018 – 1.3m x 1.0m, Suitable for bottles requiring ROPP screw-cap closures – if screw caps are required.
• Sleeve applicator and Labeller, FRAMAX, Model: LLA-R-SQ-TURBO– 2.3m L x 1.1m W, applies sleeves to bottles with corks and applies front and back labels to the bottle.
• Outfeed conveyor – 3.0m L x 1.5m W – Transfers finished bottles away from the packaging equipment for packing into cases – variable speed drive.

The equipment is in good working condition and has been maintained as part of a commercial bottling operation. The line offers a cost-effective opportunity for a winery, beverage producer or contract bottler looking to establish or expand their bottling capacity without the cost of purchasing a completely new line.

Overall foot print dimensions: 15m x 2.0m

Capacity: Up to 3000 bottles per hour.

Power Required: 415V

Suitable Applications

The line is suitable for bottling a variety of liquid products, including:

• Wine
• Water
• Olive oil
• Juice
• Other suitable liquid beverages and food products

The equipment can be configured to suit different bottle sizes and product requirements, subject to the specifications of the individual machines.

Location: Mornington Peninsula, Victoria
Condition: Good working condition
Application: Wine and beverage bottling
Availability: Ready for pickup and installation

A great opportunity to purchase a complete bottle filling and packaging solution rather than sourcing each piece of equipment individually.

Inspection available by appointment.
