Rotary Lobe Pump

Product overview

SSP Lobe Pump.

SSP Series D ductile iron rotary lobe pumps fulfil positive transfer duties throughout industry where the use of stainless steel for pumphead components is not essential, within application areas such as Petrochemicals, Chemical, Paper, Paints and Polymers, Petfood, Chocolate and Sugar.

Series D pumps also cover a wide span of sludge transfer duties throughout the environmental and industrial waste treatment processes. Transfer duties include Primary, Secondary and Humus Desludging, Thickener, Digester and Filterpress Feed and Tanker loading.

User Benefits:

• High efficiency

• Low energy consumption

• Compact size

• Robust construction

• Reversible operation

• Ability to pump abrasive media

• Cost effective easy maintenance

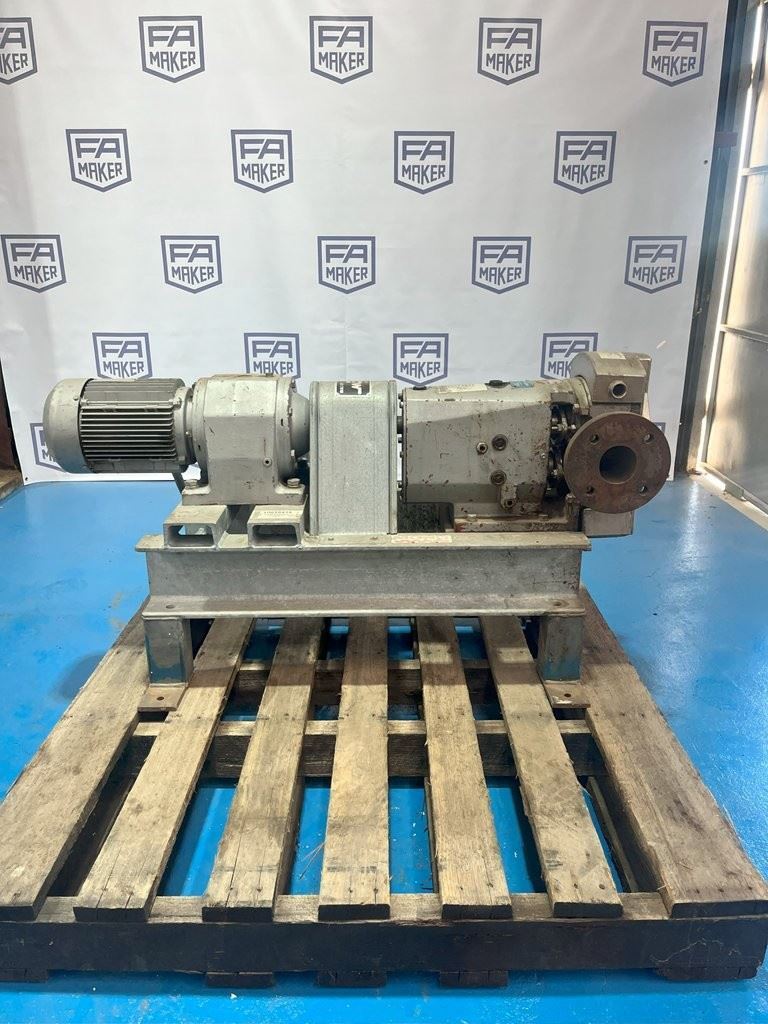

Make: SSP

Model: DRI 4079

Power: 3 Phase, 415V, 2.2kW SEW Gearmotor.

Speed: 1400/32 RPM

Inlet and Outlet: 3 Inch or 80mm

Displacement: 0.79 litres/rev

Differential Pressure: 15 BAR

Current set up pumping 25 l/min or 1.5m3/hr

Stainless steel jacket on pump chamber.

For more information, refer to attached brochure.

Mounted to steel frame.

Unit comes with forward and reversing switch.

Unit ex. chocolate factory and is in great condition.
