Tri-blender

Product overview

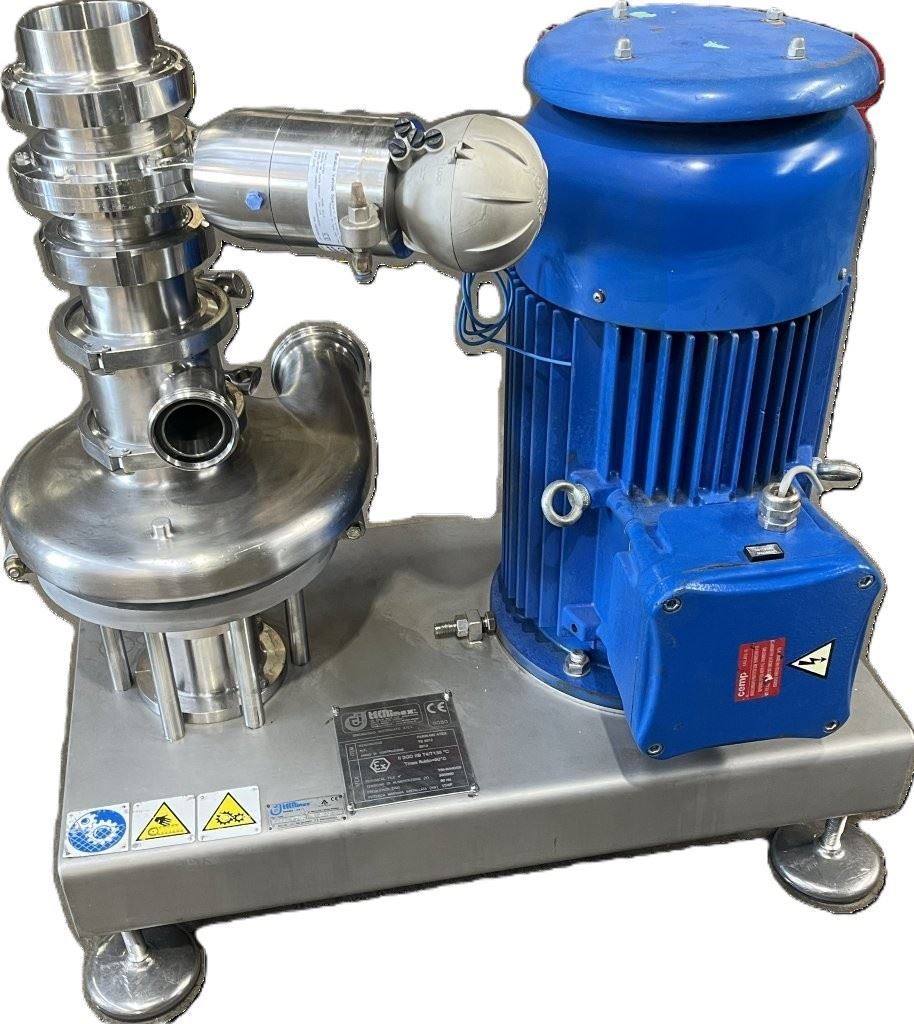

TECNINOX - Tri-Blender ATEX Rated

Powder/liquid blending system. Fast, thorough and trouble-free blending.

Tri-Blenders make it easier than ever to mix powders with liquids, and avoid the time, trouble and lost product associated with reprocessing and pre- and post-blending operations.

The Tecninox Tri-Blender is specially designed to thoroughly and efficiently blend powders and liquids, while minimising the air introduced into the process.

That means the lumping, foaming and flooding associated with conventional mixing equipment is almost totally eliminated.

Unique Tube-in Tube Design.
The Tri-Blender is designed to be installed close to the Vessel outlet and at floor level.
That’s why companies from every process industry are turning to the Tri-Blender to streamline blending applications. The Tri-Blender is designed to integrate easily into your present process system.
Plus, its compact size and easy portability means it can be moved or installed virtually
any place in the process.

Operation Principles.
Dry ingredients are fed into the hopper.
Vacuum created by the impeller draws the dry ingredients into the blending chamber.
As the dry ingredients are added through the hopper, liquid is simultaneously pumped into the head of Tri-Blender.
The diffuser tube separates powder from liquid until they are fed into the blending chamber.

Applications:
• Dairy - powdered milk, butter-milk, ice cream mix, whey protein
• Food - pudding, chip dip, pizza sauce, stabilizer addition, powdered egg, starch and gum
• Beverage - concentrate, flavor addition, vitamin drinks
• Personal Care - soap blends,lotion, cosmetics, hair gel, tooth paste
• Chemical - herbicide agent, film solution, fertilizer, biodiesel
• Pharmaceutical - active ingredient blends, cough syrup, tablet coating

Model Number: F4329-MD ATEX.

ATEX Rating: II 2GD IIB T4/T135degreesC

Tmax fluid=90C

Dry Ingredient Capacity: 159 KG/MIN.

Flow Rate: 34,000 L/H.

Powder Inlet: 4 Inch

Liquid Inlet: 2 Inch

Liquid Outlet: 3 Inch

Powder inlet has a pneumatic control valve.

CEMP Electric motor, Extb IIIC T135degreesC Db.

3 Phase, 380/660V, 37.15/21.45A, 17.25kW, 60Hz, 1760RPM, EX rated Motor.

Impeller speed approximately 3500 RPM.
