Roots Blower

Product overview

AERZEN Positive Displacement Blowers (of the "Roots" type design) have been manufactured since 1868 and today are highly developed standard production machines designed and adapted to find use in a wide variety of applications.

Three-lobe rotary pistons. Pulsation reduction by interference.
The conveying chamber (cylinder) is sealed by the oil chambers (housing cover and gear case) by piston ring - labyrinth sealings, the driving shaft by a radial seal.
In case the oil level is too high, oil can penetrate into the conveying chamber in an uncontrolled way.
During compression, heat is created which is partly dissipated to the ambient air via the external surfaces of blower and conveying pipes.

2 Units available:

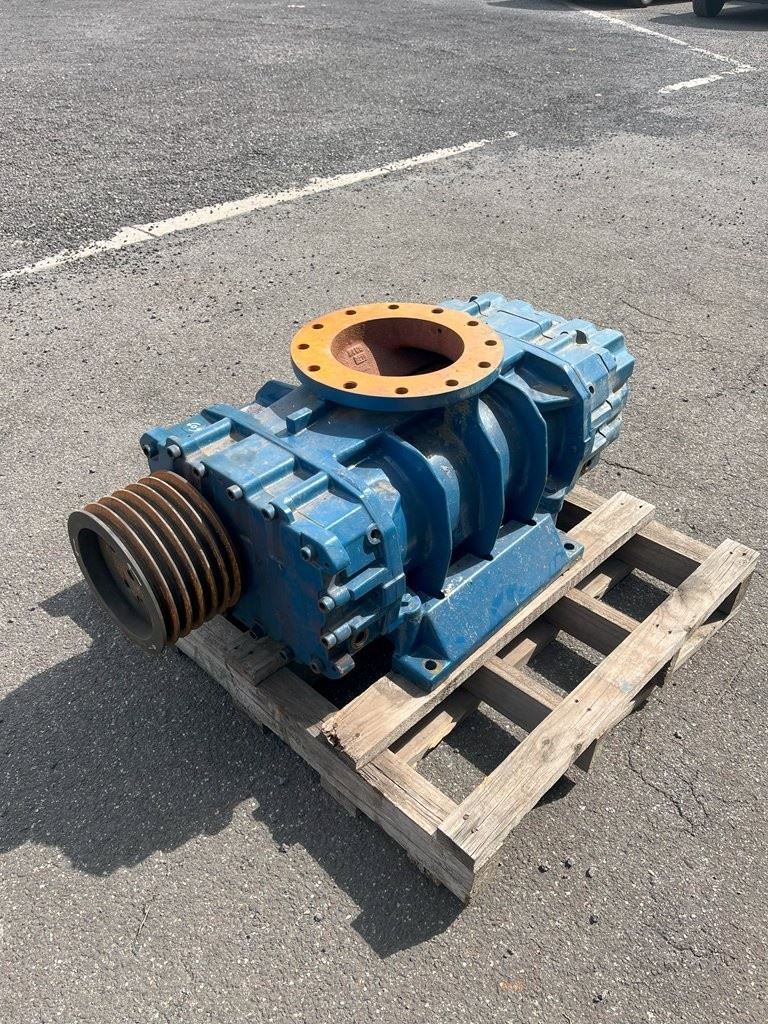

Model: GM80L.

DOM: 2010, 2018.

RPM: 3000

kW: 120, 126.9.

Volume: 81.35 m3/hr, 81.36 m3/hr.

Flange Inner Diameter: 10 Inch.

P1: 1.0 BAR

P2: 0.7 BAR

Weight 630kg

Both units in excellent condition.

Price per unit.

The following are only a few examples of the many applications in which Aerzen Blowers can be used:

Applications:
Water and waste water treatment
Pneumatic conveyance of bulk materials
Aeration
Filter backwashing
Gas conveyance
Degassing
Dust removal
Vacuum production
Biogas treatment
Air separation plant
and many others
Industries:
Sewage treatment
Chemical and process technology
Power plants
Cement and lime
Foodstuffs
Paper, and many others.
