Hot Water Boiler

Product overview

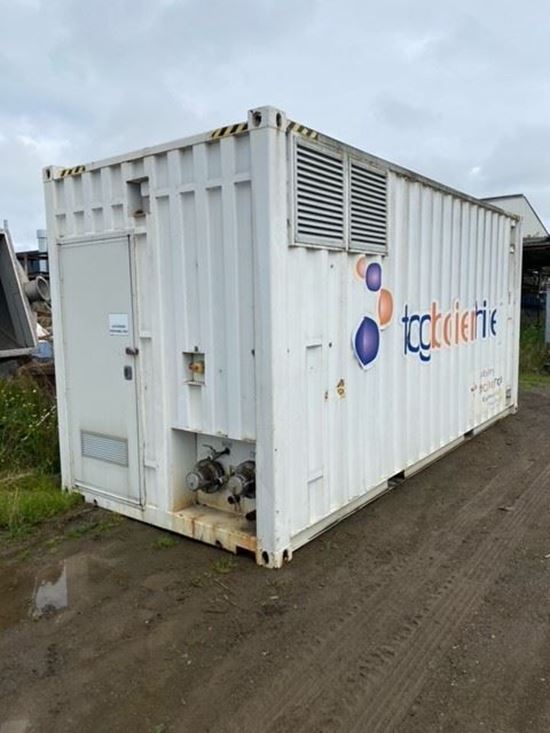

This containerised hot water system provides recirculated 80C hot water. The system, includes a diesel fired closed circuit water heater, circulation pump, thermostatic controls and safety equipment.

The unit is ideal for use in commercial and industrial environments.

Automated system start up/shut down via programmable timer

Technical details

Heating output capacity 1000 kW max

Hot Water Supply Temperature 80degC (nominal); adjustable within range 60-80degC

Hot Water Return Temperature 60degC (minimum)

Maximum System Pressure 3 barg

Hot Water Flow Rate 30 litres/second (nominal)

Fuel Type Diesel

Fuel Consumption 120 litres/hr (approx. at continuous rated output)

Electrical power requirement 415V 3 phase, total current 63 Amps

Water connections ANSI 150 flange DN 125

Weight 11tonnes

Container dimensions:

6.3m long x 2.38m wide x 2.89m high

(+ 2m for flue extension, removed during transport)

Thermal expansion tank 150 litres included (extendable via auxiliary port)

Compliance AS/NZS 1210 Pressure Equipment

IEC 60204-1 Safety of Machinery - Electrical equipment of machines

80 deg C

Hotwater flow rate 30 litres/seccond

YOM: 2013

Located in Melbourne.
