Liquid Ring Vacuum Pump

Model
LELQ 250
Stock Code
22556
Manufacturer
SIHI
Category
Vacuum Pumps
KW
5.5
M³/hr
213

Product overview

SIHI liquid ring vacuum pumps are displacement pumps of uncomplicated and robust construction with the following particular features:

  • Non-polluting due to nearly isothermal compression.
  • Oil-free, as no lubrication in the working chamber.
  • Handling of nearly all gases and vapours.
  • Small quantities of entrained liquid can be handled.
  • Easy maintenance and reliable operation.
  • Low noise and nearly free from vibration.
  • Wide choice of material, therefore applicable nearly everywhere.
  • Shaft not contact with the medium.
  • Protection against cavitation as standard.
  • Incorporated dirt drain.
  • Incorporated central drain.
  • No metallic contact of the rotating parts.

The SIHI liquid ring vacuum pumps LEL are single-stage ones.

APPLICATION
Handling and exhausting of dry and humid gases; entrained liquid can be handled during normal duty.
The pumps are applied in all fields where a pressure of 33 to 900 mbar must be created by robust vacuum pumps.

Pump Specifications:

  • 3 Phase, 415V, 5.5kW, 10.9A, 1455 RPM.
  • Volume: 200m3/hr @ 900mbar
  • Maximum overpressure on compression: 0.5 BAR
  • Permissible pressure difference between suction and discharge side: Max- 1.3 BAR, Min- 0.2 BAR
  • Hydraulic test pressure (overpressure): 3 BAR.
  • Moment of inertia of rotating parts of pump and water content: 0.097 kg/m2
  • Noise level at 80 mbar suction pressure:L 65 dB (A)
  • Maximum gas temperature: Dry 200C, Saturated 100C
  • Service liquid: Maximum permissible temperature 80C, Minimum permissible temperature 10C
  • Maximum viscosity: 4 mm2/s
  • Maximum density: 1200 kg/m3
  • Liquid capacity up to middle of shaft: 4 litre

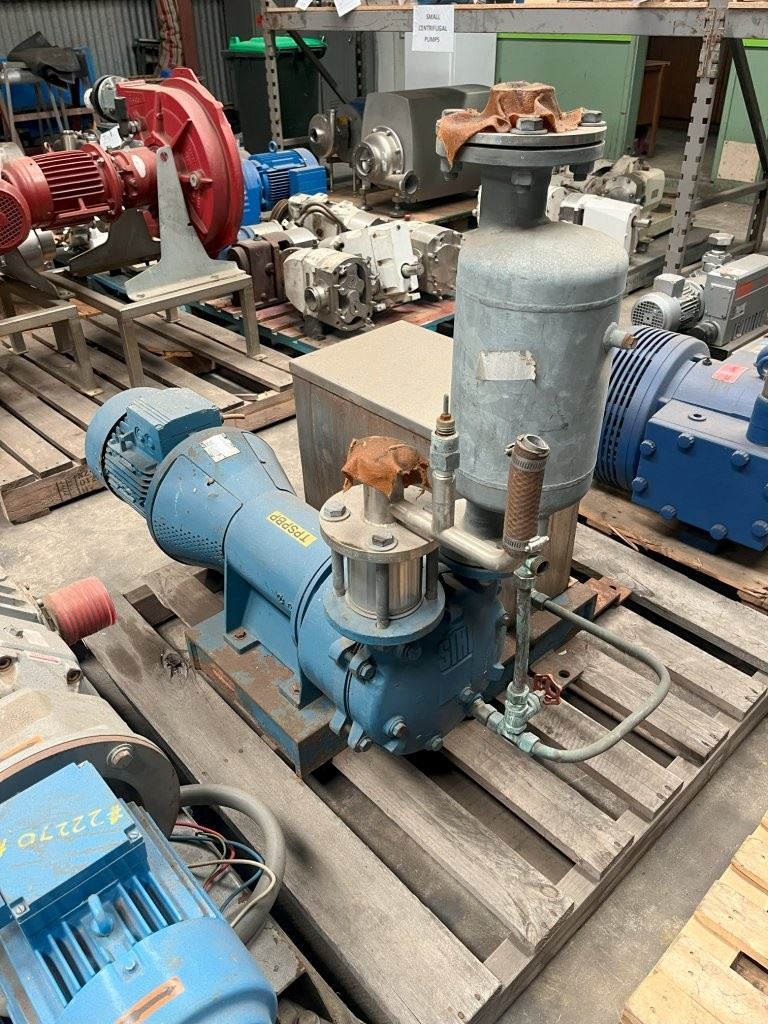

Pump is mounted to a heavy duty frame.

Pumps comes with a liquid separator and also a 68 litre balance tank for continuos supply of service liquid to the pump.



Please see attached leaflet for more information and performance curves.
