Alfa Laval Centrifugal Pump

Product overview

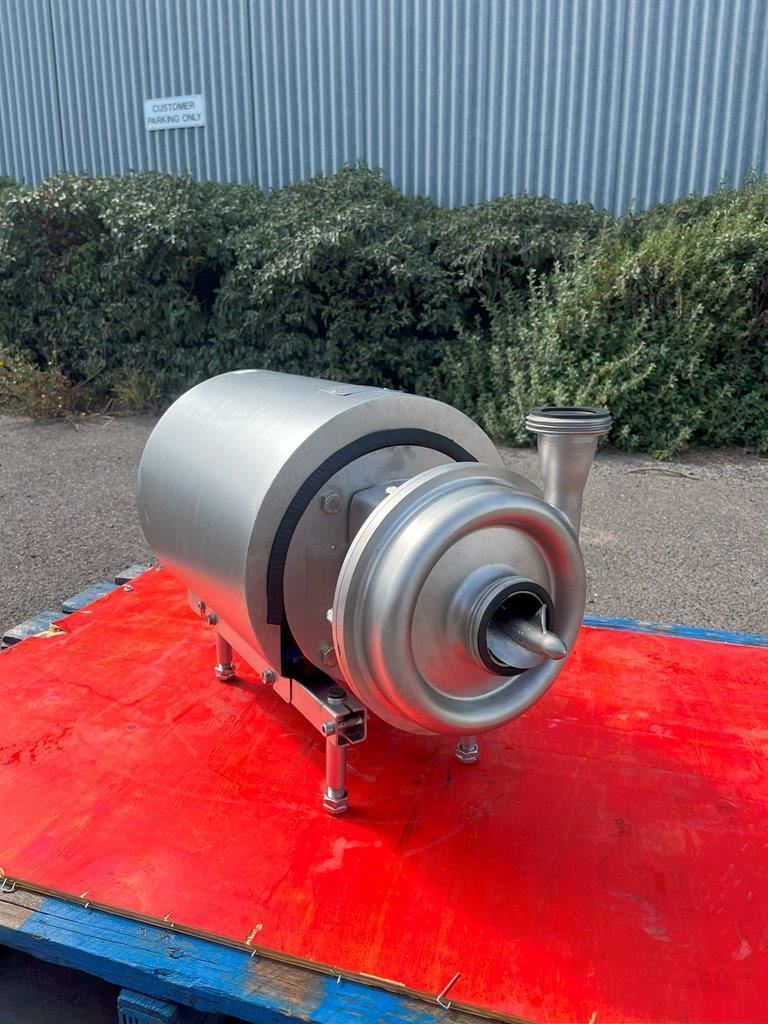

Alfa Laval Centrifugal Pump

Designed to meet the hygienic requirements of the dairy, food and beverage and personal care industries, LKH centrifugal pumps increase process productivity while providing high efficiency and gentle product handling.

Stainless steel.

Model: LKH10

Power: 3kW/4HP, 415V, 3 Phase

RPM: 2920

Impeller Diameter: 140mm

Suction: 2.5"/63.5mm/DN65

Discharge: 2"/51mm/DN50

Capacity: Approx 35m³/hr / 35,000 Litres per hour.

Impeller fitted with Inducer.

An inducer is the axial inlet portion of a centrifugal pump rotor, the function of which is to raise the inlet head by an amount sufficient to prevent significant cavitation in the following pump stage. It is used in applications in which the inlet pressure of a pump is close to the vapor pressure of the pumped liquid.

Runs well.
