Alfa Laval LKH Multistage Pump

Product overview

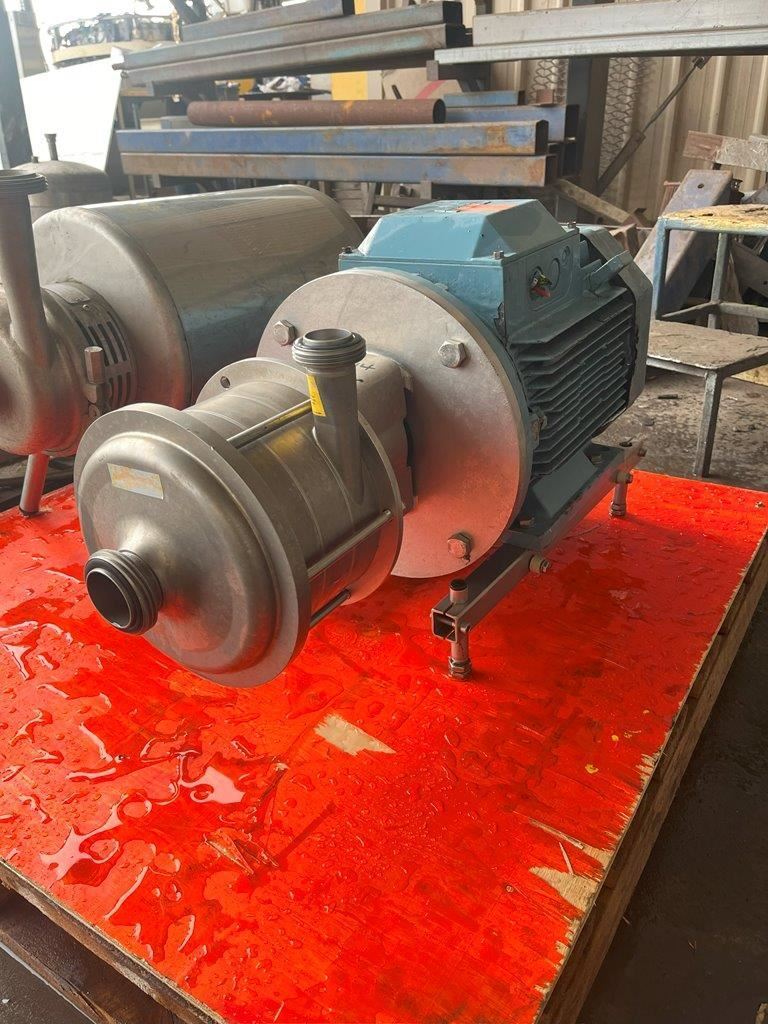

Alfa Laval LKH114/160 Multistage pump.

3 Phase, 415V, 15kW, Electric motor.

RPM: 2920.

Inlet: 2 Inch

Outlet: 1.5 Inch

Flow: 25 m3/hr.

Max inlet pressure: 10BAR / 145 PSI

The LKH Multistage Pumps save space and energy by replacing up to three booster pumps in a line. Used primarily in high-pressure applications with low capacity, they withstand system pressures up to 40 bar and deliver differential pressures up to 19 bar at 50 Hz. Designed for Cleaning-in-Place (CIP), the pumps are suitable for, but not limited to, many types of filtration applications across the food, beverage, homepersonal care, biotechnology and pharmaceutical industries.
