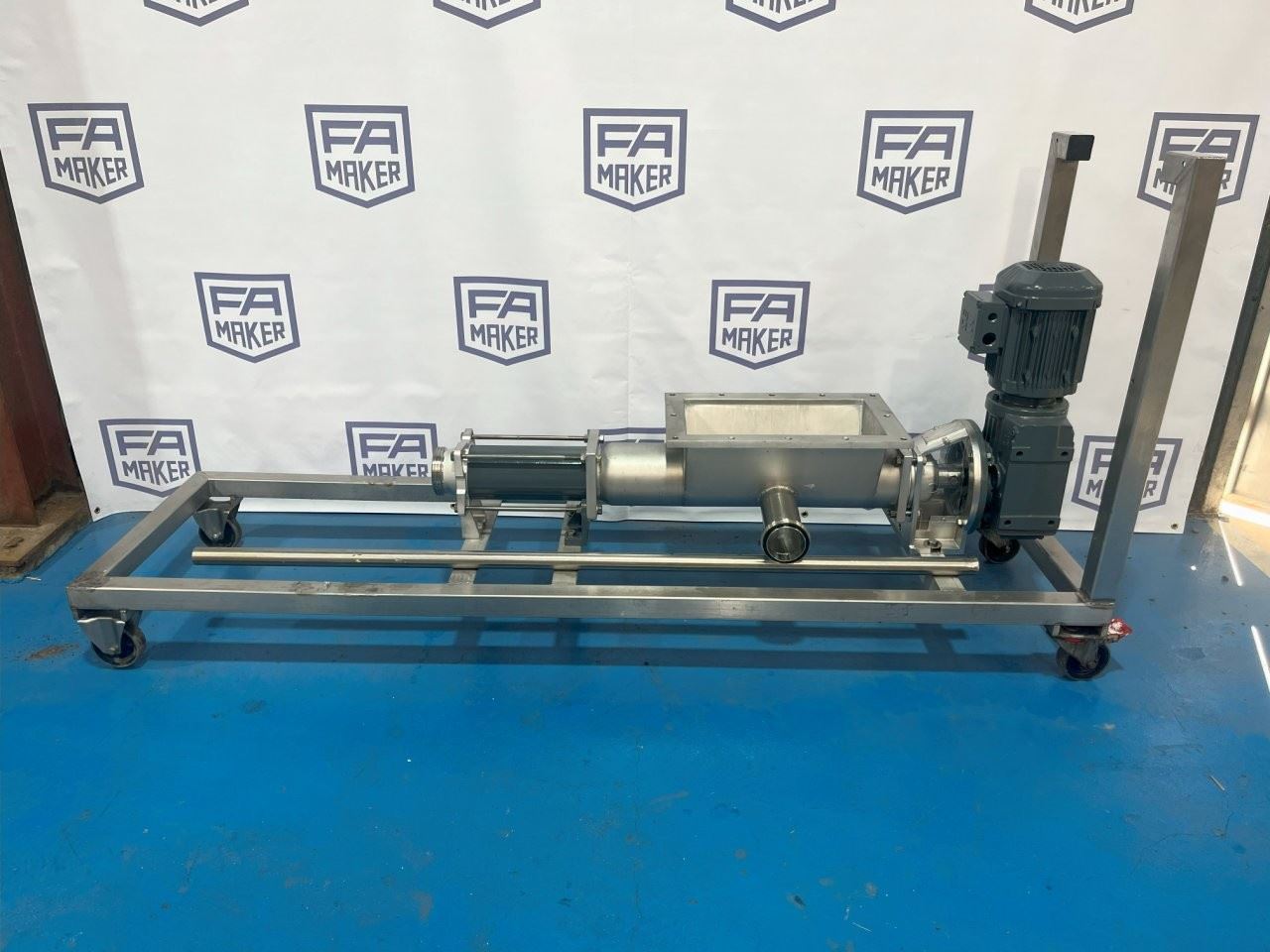

Open Throat Progressive Cavity Pump

Product overview

CSF Inox - Italy

Progressive cavity, positive displacement pump.

Stainless steel, open throat with stainless steel body and screw.

Close coupled model.

Mounted to a stainless steel frame with caster for manouverability.

3 Phase, 415V, 1.5kW SEW gearmotor fitted.

29 RPM.

Theoretical flowarate at 29RPM: 800 LPH / 0.8m3/hr

Hopper dimensions 400mm x 240mm.

3 Inch side port.

3 inch outlet.

Unit in good condition and runs.

Will need a new mechanical seal.
