Diaphragm Pump

Product overview

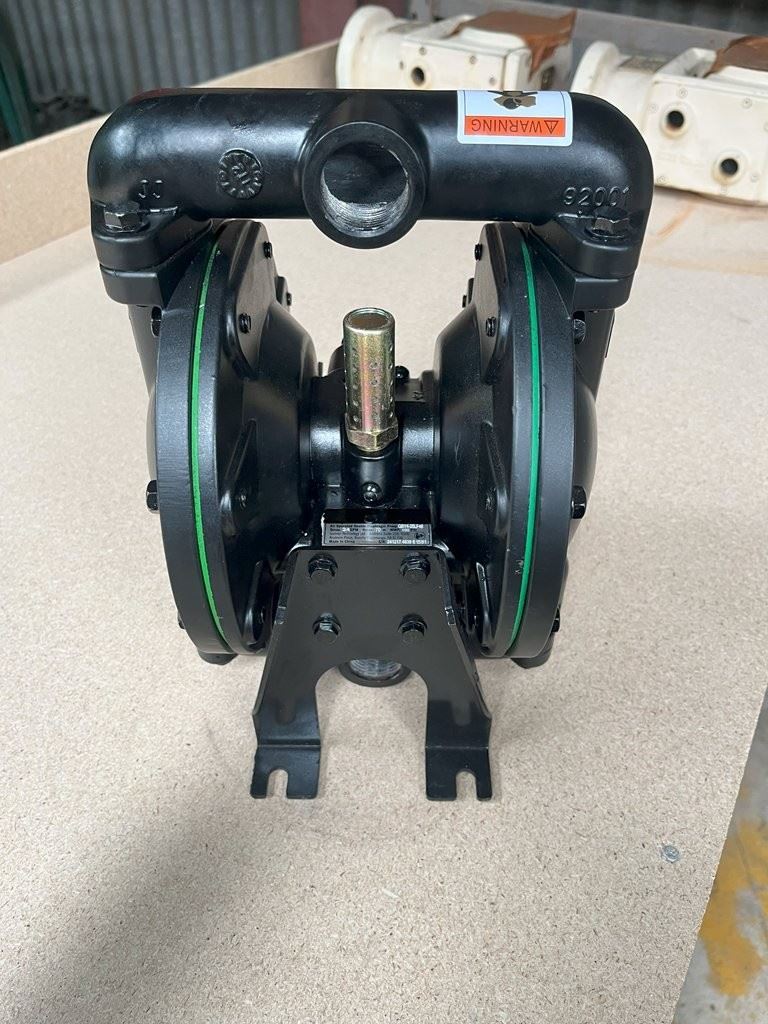

NEW - Air operated diaphragm pump.

Air-Operated Double Diaphragm Pump Aluminum Alloy Construction & PTFE Diaphragm & 90 LPM Flow Rate.
Features an all-bolted aluminum alloy body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage.
Sealed ball valves and non-stall operation provides outstanding performance.
It is perfect for transferring viscous and flammable fluids.

Inlet/Outlet Port: 1 inch / 25 mm
Body Material: Aluminum Alloy
Diaphragm Material: PTFE
Air Inlet Size: NPT 1/2 in / 12.7 mm
Max Flow Rate: 24 GPM / 90 LPM
Max Head: 229.6 ft/70 m±15%
Valve Type: Ball
Suction: 0-5 m / 0-16.4 ft
Max Suspended Solids: 3 mm / 1/8 in
Average Air Consumption: 38 CFM
Self-Priming Dry: 3 m / 10 ft
Self-Priming Wet: 4.6 m / 15 ftv
