High Shear Mixer

Product overview

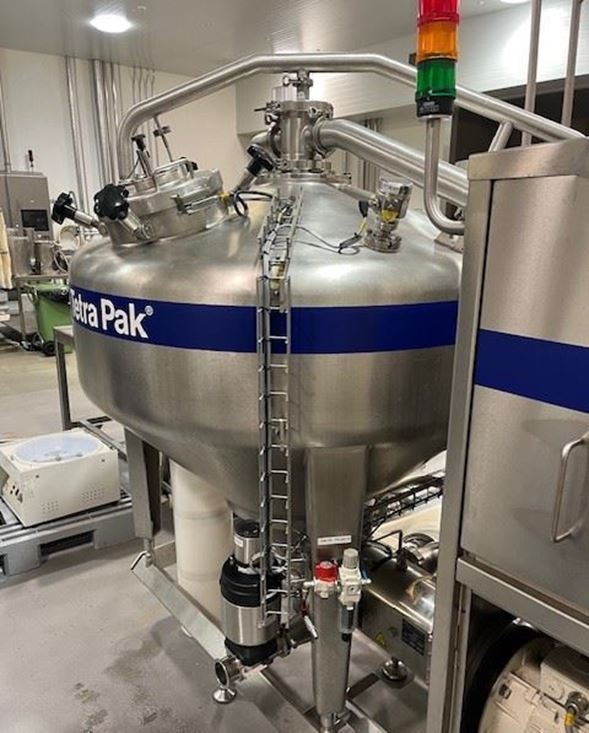

Tetra Pak High Shear Mixer

Model R370-1000D

Year 2018

The New Generation of High Shear Mixer

Vessel size: 300 litres with final output < 35,000 litre/hr

Unparallel mixing solution achieved when the recirculation mixing principle equipped with new designed-mixing head and deaerator system. Smaller particle size and significantly in reducing foams are the most advantage of this unit.

The new generation high shear mixer is designed to enable mixing of high-viscous products in recirculation setups. It achieves superior emulsification, powder dissolving and deaeration performance and it represents an ideal solution for producing high volumes of most concentrated food products including beverage concentrates, ice cream mixes, infant formulas and dairy desserts.

Applications: From low to medium viscous products < 2,000 cP such as Dairy, Beverage especially when the powder used create lots of foams

Wide range of applications Dairy, Beverages, Prepared foods and sauces, cheese and ice cream.

Supply and consumption data

Voltage, V (Hz)  380-480    (50/60)

Power, kW 58.2

Water, l/h 100

Compressed air, Nl/h 100

Shear rate, s-1 100 000

Processing parameters

Final product capacity, kg/h < 35 000

Viscosity, cP ≤ 2 000

Mixing temperature, °C 80

Oil addition rate, kg/min 75

Powder addition rate*, kg/min 175

Dimensions Length, mm 3350 Width, mm 1600 Height, mm 2100
