Rotary Drum Vacuum Filter (RDVF)

Model
LUX 6
Stock Code
21775
Manufacturer
PADOVAN
Category
Rotary Drum Vacuum Filters

Product overview

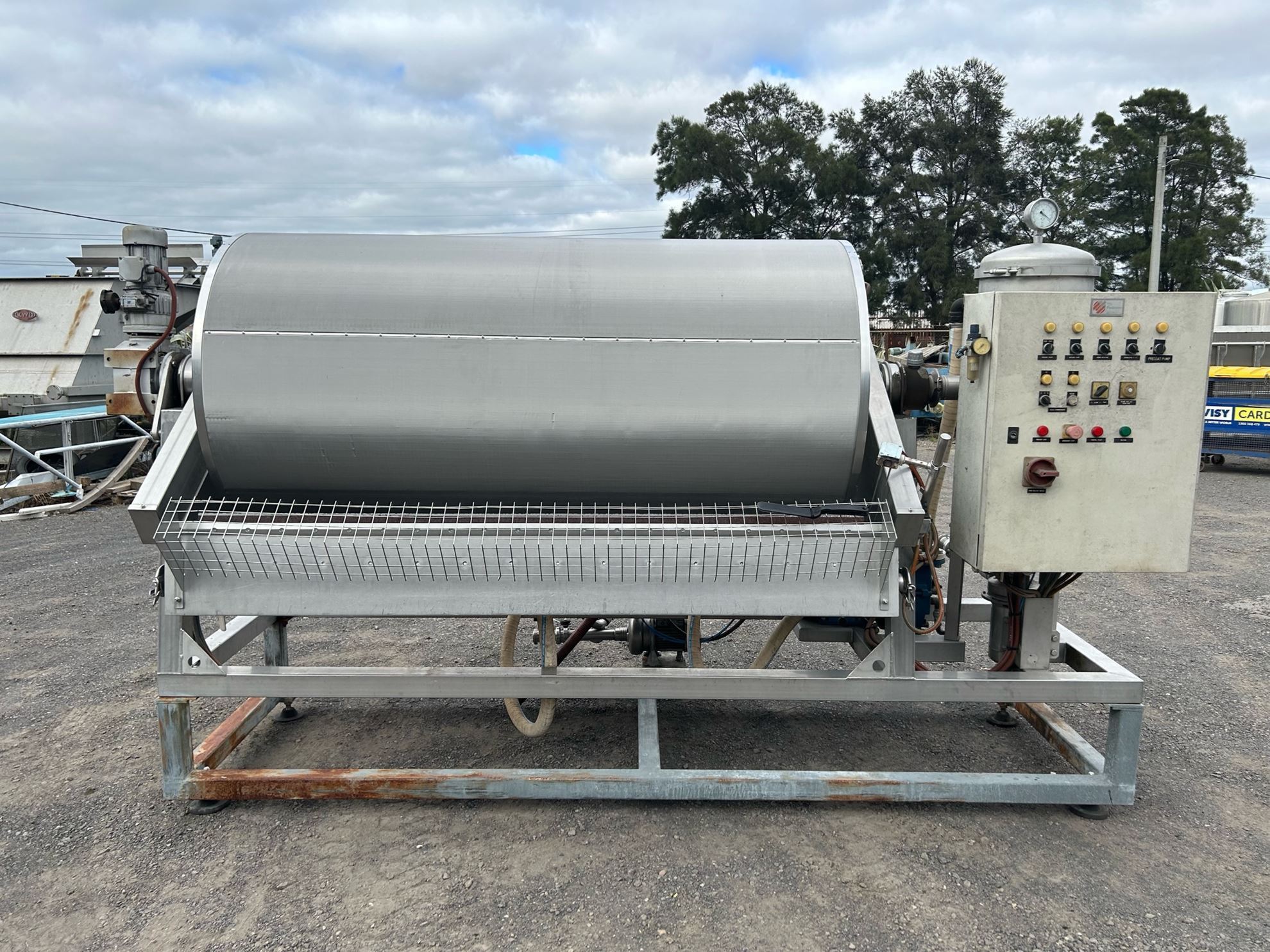

Padovan Taylo RDVF

Stainless Steel Filter Area - Drum is 1m dia x 2m long

Filter Area 6m2.

Approximately 80 Micron screen.

Skid mounted and all complete with Vacuum pump, control panel and feed pump.

Drum Motor - 0.37kw

Knife Motor - 0.18kw

Vauum Pump Motor - 4kw

Pump Motor - 1.1kw

Ex Winery in good working condition.

Rotary Vacuum Filter Drum consists of a cylindrical filter membrane that is partly sub-merged in a slurry to be filtered. The inside of the drum is held lower than the ambient pressure. As the drum rotates through the slurry, the liquid is sucked through the membrane, leaving solids to cake on the membrane surface while the drum is submerged. A knife or blade is positioned to scrape the product from the surface.
