Rietz Screw Press

Product overview

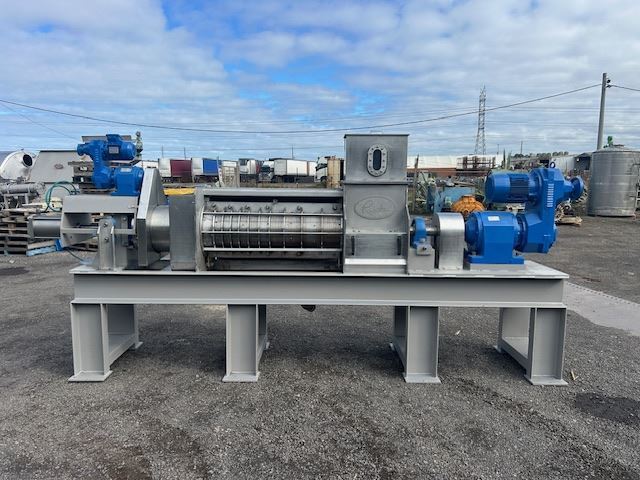

Used- Rietz Bepex S-Press Continuous Horizontal Screw Press,

Model RSP-12-K2,

316L Stainless Steel.

Approximate 12" diameter x 60" long screw with a 1mm SS mesh screen.

The screw press is fitted with a pneumatic pressure cone for maximum recovery, liquids are extracted at three separate points; the inlet hopper, the main press and the pressure cone.

Its driven by a 15hp, 3/50/400 volt gear motor with a ratio of 78.57 to 1.

Mounted on a carbon steel frame.

Serial# RSP-89001436 - YOM 2007

One unit available only

Ex Juice plant

The Bepex S-Press is a high-capacity, continuous screw press designed for mechanical dewatering, juicing, or solvent removal. It’s often used to remove as much liquid as possible before further, more costly thermal processing. Its sanitary design and easy cleaning makes the S-Press widely used in the food industry.
