Serac Rotary Filler

Product overview

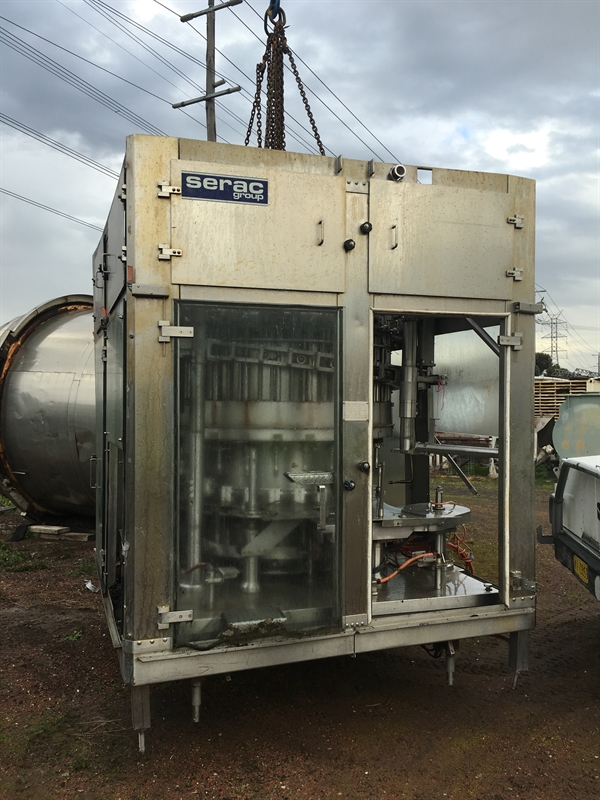

SERAC DT27/1620
27 head rotary piston filler with enclosures

This rotary piston filler was last used for filling cream cheese and other similar viscous products.

It was filling glass jars at various sizes:
140 ml - Screw cap
240 ml - Cryovac/Push Cap  - approx 300 jar per minute
250 ml - Screw cap
500 ml - Screw cap
680 ml - Screw cap
910 ml - Screw cap  - approx 90 jar per minute

This rotary piston filler is in good condition and has the following specs
Filling Nozzles:  27
Pitch(inches):  7.40
Volume:  Piston Dia. 1.57 inch from 2.44 to 15.25 in3
               Piston Dia. 2.43 inch from 6.10 to 37.83 in3
               Piston Dia. 3.15 inch from 12.10 to 82.73 in3
Output Max cpm:  420 product & size dependant
Consumption:  KVA 5
                      CFM 18
Requires some work to put it back into production.
