Stainless steel live hopper

Product overview

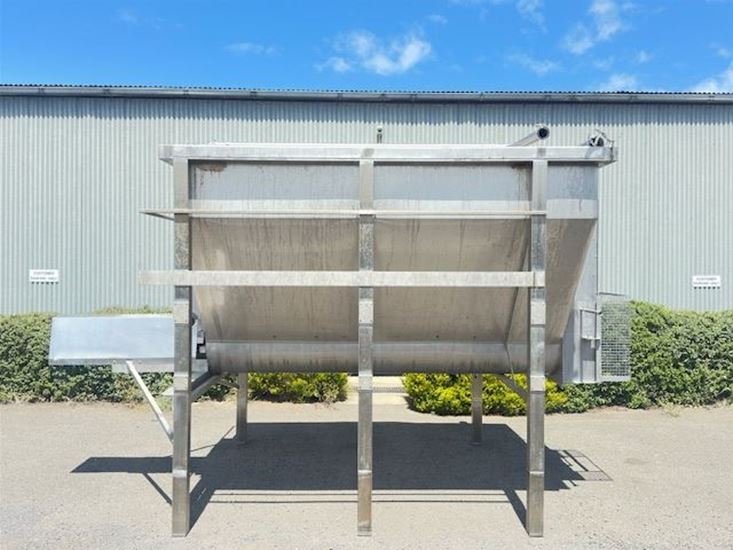

 Hygienic designed stainless steel live hopper

This hopper was designed for a cheese plant but was never installed. The manufacture has used 316L SS steel for all parts and installed CIP spray balls in the top for easy cleaning.

The hopper has a 500mm screw auger at the bottom of the hopper so that all products can be discharge out of the hopper via the sliding door.

The auger is fitted with a 2.2kw WEG inline gearbox and the discharge outlet opening is 600mm x 600m.

- Approx 8000lt holding capacity

- Motor power 2.2kw 415V

- Outlet discharge height 1200mm from ground

- Dims of hopper 3.0m high x 2.7m wide x .4.8m L

- Two Side platforms and some pipework are included with the hopper
