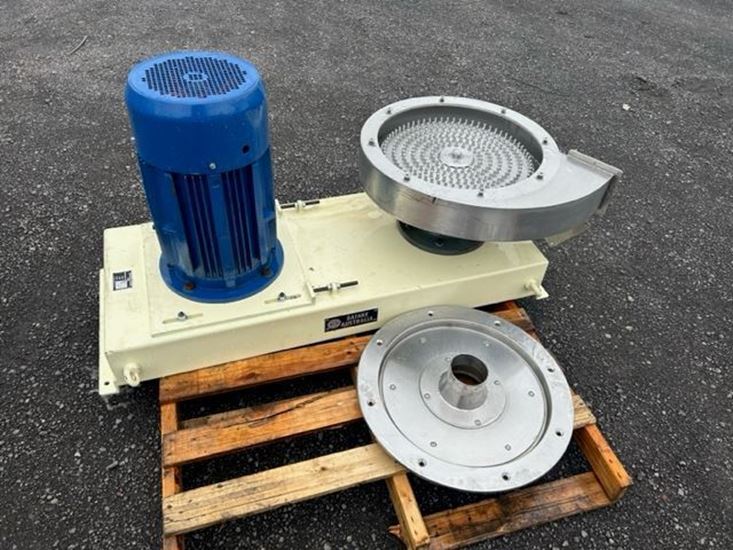

SS Pin Mill

Product overview

The Satake RPMC Pin Mill is a high speed impact grinding machine designed for the grinding of dry materials. These include products such as sugar, salt, spices, dehydrated vegetables, dairy products, extruded products and a number of powders, grains and seeds.

Stainless steel contact parts.

Rotor Speed: 5000rpm

Motor: 18.5kw, 415V

Rotor Dia: 450mm

Pins: 8mm dia x 16mm long

Product Inlet: 100mm

Product Outlet: 100mm x 90mm

765m3/hr air generated by the mill

No electrical controls.

The grinding action within the Pin Mill is achieved by impacting the product particles with a series of hardened steel pins. The product enters through the eye of the machine and then passes through rows of pins rotating at high speed between stationary pins. The product particles are shattered into fragments as they progress towards the outlet. This action creates a fan effect and a high volume of air is drawn through with the product, keeping it cool. The machine’s grinding action can be controlled by altering the feed rate to the machine and the speed of the rotor.

The RPMC Pin Mill is compact, hygienic, requires little maintenance and will self clean when changing from one product to the next.
