Product overview

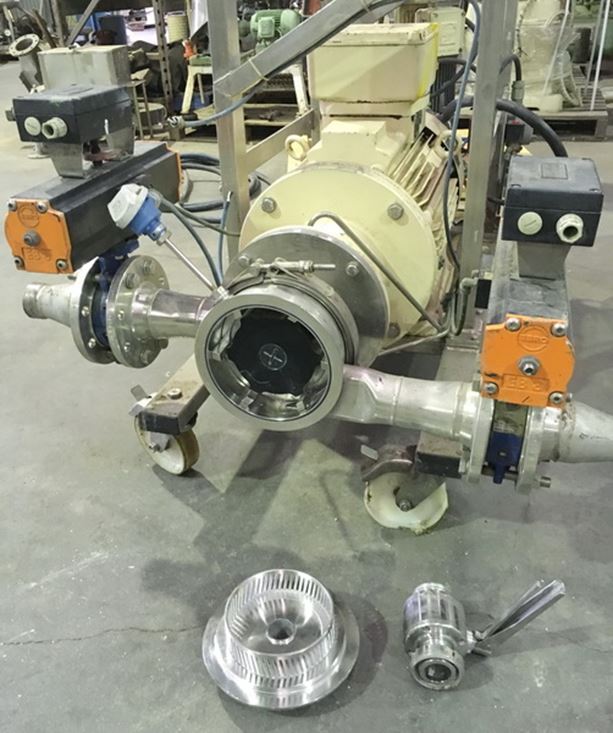

Ystral Conti TDS 4.
Inline Dispersing of Powders and Liquids.
Drive motor 41kw 415v 2 pole.Exd.
80mm x 80mm inlet outlet.
Stainless steel construction.
Capable of dispersing up to 60,000L liquid/hr with up to 6000kg/hr of powder.
A rotor-stator system transports and disperses liquid with high shear energy. The liquid that flows through the dispersing chamber builds up a high induction vacuum. This vacuum inducts powder from any container directly into the liquid. After powder induction the may be used as an inline dispersing machine to circulate and further disperse the product.
Suitable for foods, suaces, milk drinks, toothpaste, shampoo, gels syrups, resin, paints, inks and many others.
For more details see the link below:
http://jmeyerassociates.com/app/download/7242886809/Ystral+Conti+TDS+.pdf
