Tetra Laval Kombinator

Product overview

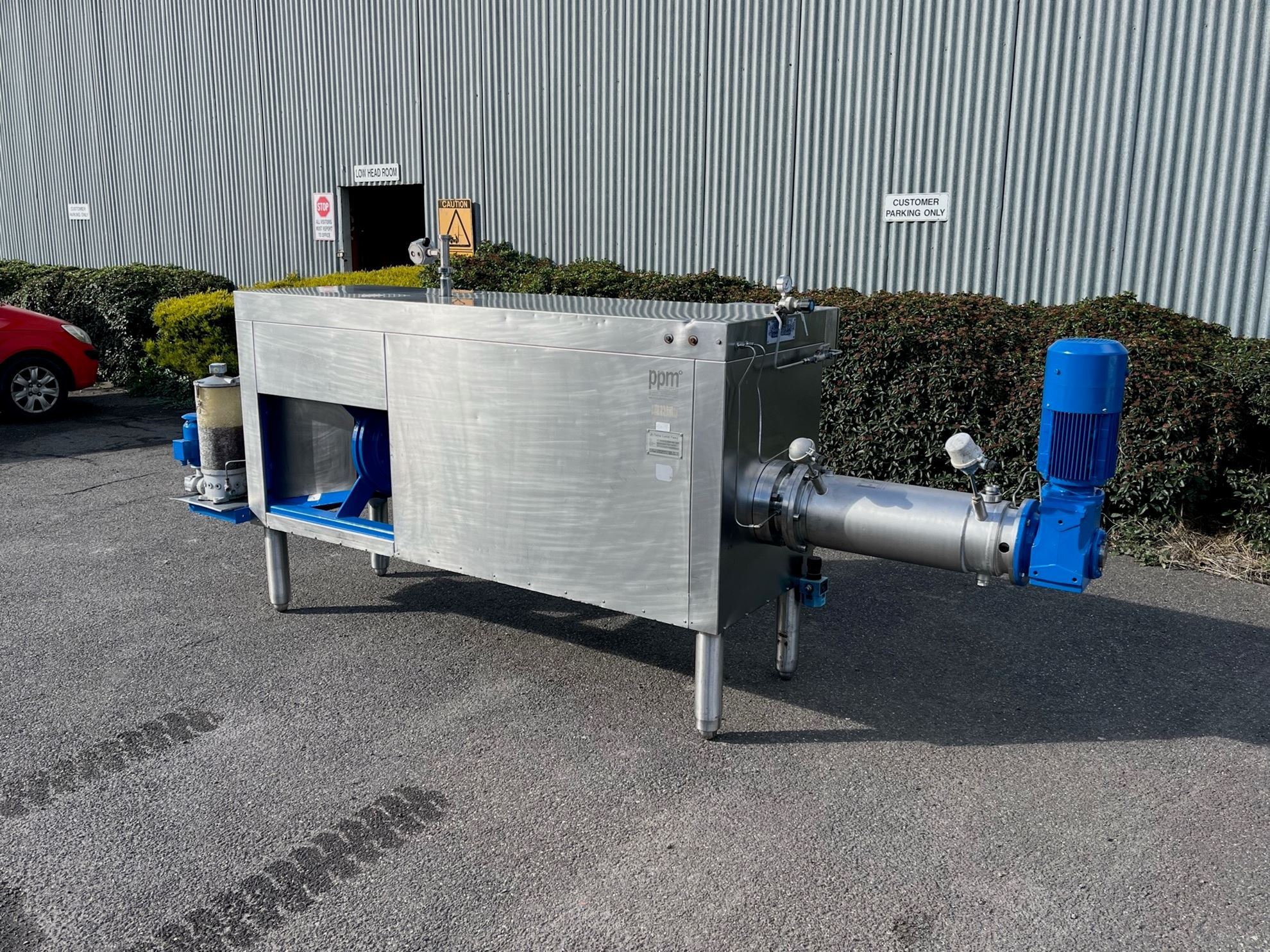

The Gerstenberg Schröder Kombinator is a compact scraped surface heat exchanger designed for various high-viscosity applications within the Fats & Oils industry. It provides high crystallization performance, minimal downtime and easy maintenance.

Approximate 28 Total Square Feet

Model WMK 178/1400KCF

316 Stainless Steel

Approximate 250mm diameter x 1400mm long jacketed chamber with a pin rotor mounted in the front.

Top tube driven by 5.5 kw, 3/50/415 volt, 1440 rpm gear motor, output 121 rpm.

Pin rotor driven by a 3 kw, 3/50/415 volt, 1440 rpm gear motor.

1-1/2" Inlet and outlet

Mounted on a carbon steel frame with stainless steel sides.

Approximate output 1000 litres per hour.

Last used to manufacture Margarine.
