Product overview

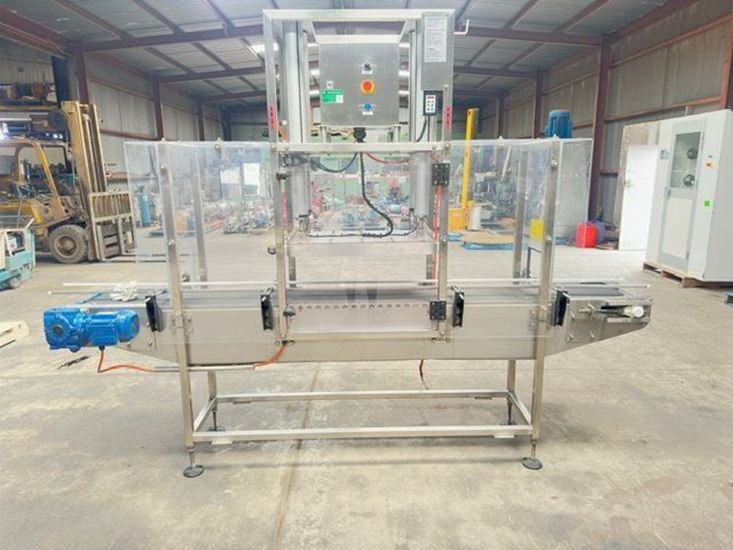

GP's Fabrication Universal lid press machine - Built from Stainless steel and designed to press lids on plastic pails and tubs from 75mm to 500mm in height. (approx. 500 ml to 20 litres).
SPECIFICATIONS
• Unit designed, fabricated and guarded to meet all applicable Australian standards
• Unit has Risk Assessment Certificate to conform to all applicable Australian Safety Standards
• Full 316 Stainless Steel construction
• Unit guarded by clear 4.5 mm polycarbonate sheet over entire conveyor and lidding rollers. Polycarbonate doors (9.5 mm) on each side of lidding section for setup and cleaning purposes. Doors incorporate Category 1 safety switches
• Belt speed variable between 4 and 10 m/min (controlled by SEW VSD)
• SEW 0.55 Kw motor IP55 • 100 mm diameter drums on the conveyor section using a 3mm thick PVC Belt
• 900mm guard tunnel at each end of conveyor to prevent operators reaching in while machine is operating (minimum safety distance to conform to Australian Safety Standards)
• The lidding roller section is height adjustable (driven by Servo Drives) controlled by a panel push button.
DIMENSIONS
• 2900 mm x 500 mm (approx)
• Height adjustable from 500 to 700 mm to top conveyor bed
• Weight 500 kg (approx)
See link for video - https://www.youtube.com/watch?v=SjPQGlDCTGc
