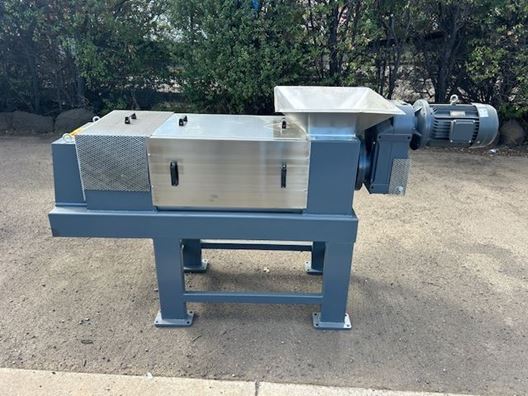

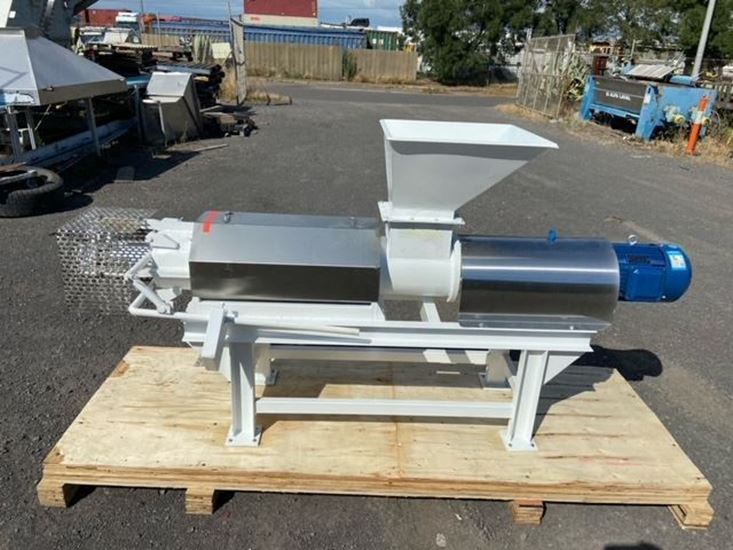

Dewatering Screw Press

Product overview

NEW - Dewatering screw press with st/steel auger and dewatering screen.

Capacity up to 10m3/hr

0.5mm (500micron) heavy duty St/Steel wedge wire screen

180mm dia screw auger with 80mm screw pitch.

End plate resistance via adjustable counter weights

Slurries are fed into the hopper which has an auger feed that dewaters the material through the screen.

Liquids come out underneath via a drain outlet (110mm) and the dry solids come out the end.

The hopper is 500mm x 500mm with a 200mm x 200mm opening into the screw feed.

4kw, 415V drive motor.
