Huber Strainpress

Product overview

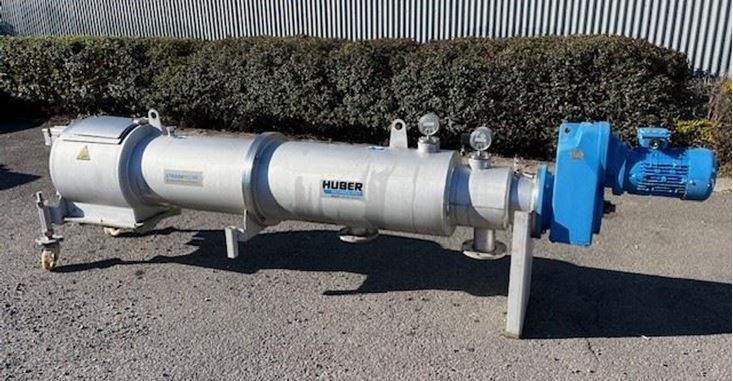

Used Huber SP 4 Strainpress - Stainless steel contrusction, fitted with a 430mesh SS screen and a 3kw 400 V gearedmotor.

Throughput capapcity is approx 160 M3/h at 3% DS and screening volume is 2000 l/h with 35%-45% DS. YOM 2010

Two units available. price per unit

Coarse material separator for municipal and industrial sludge and process water

• Screening, dewatering and discharge in one working process
• Continuous coarse material separation under pressure

The STRAINPRESS® is a horizontal pipe-shaped coarse material separator which consists of inlet and driving zone, screening and press zone and finally a discharge section with a conical pressure regulating device. The coarse material is separated continuously under pressure and periodical cleaning of the screening zone by backwashing is not required.

The Advantages of the HUBER Sludgecleaner STRAINPRESS®

• The STRAINPRESS® system can be integrated in a closed pipeline system.
• Screening, dewatering and transport of the coarse material in one operation.
• No second pump is required for the screened sludge owing to the closed and compact in-line system.
• Continuous coarse material separation under pressure with a loss of pressure between 0.4 and 0.6 bar
• Washing off sludge or backwashing is not necessary.
• The horizontally moveable screw can be re-adjusted to ensure continuously perfect screen cleaning.
• Fully-automatic continuous or intermittent operation.
• Little space required, easy subsequent installation into the pipeline.
• Insensitive to varying feed volumes or coarse material structures
• The automatic pressure requlating conus ensures uniform dewatering even with strongly varying coarse material quality and concentration.
• When handling sludges with heavily varying DS and coarse material content, the pressing screw starts to work in dependence of the operating pressure (filter cake resistance).
