Weiner Chocolate Ball Mill

Product overview

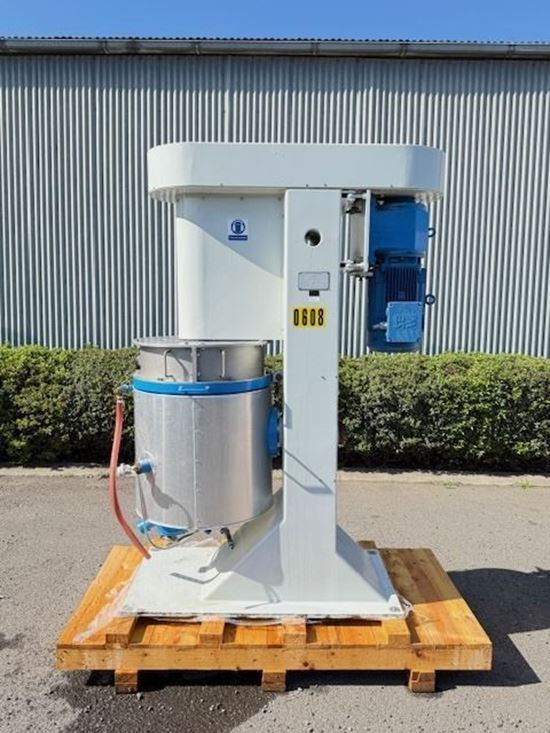

Wiener Vertical Chocolate Ball Mill, 168lt Stainless steel jacketed tank, 11kw SEW Drive.

The machine comes with 6mm balls and 10mm balls.

Approx capacity - 100-500 kg/hr

Application - Cocoa Liquor Processing, Paste processing

(requires a pump)

Description
Grinding is achieved via a vertical, jacketed tank with a rotating shaft fitted with agitator arms and filled with hardened steel balls. As the product circulates from bottom to top, it is refined through continuous friction between the grinding media. Precise control of pump speed and pressure ensures optimal fineness – achieving particle sizes below 20 µm with excellent distribution.
